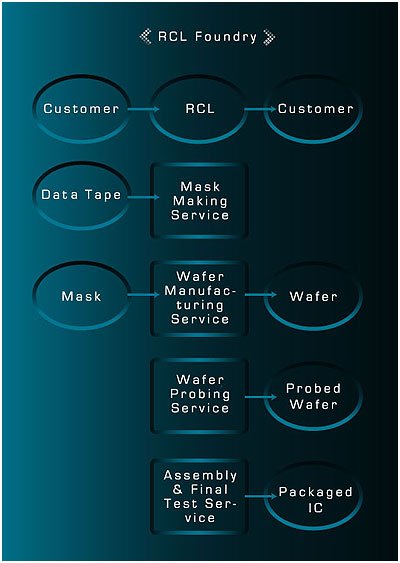

Silicon Foundry Service, the processing of customer proprietary circuits, has been an important and dedicated segment of RCL’s business effort since the company began production in the year 1980. RCL’s principal foundry endeavor is wafer fabrication, but we can also provide optional services which include customer design, wafer testing, die sorting and inspection.
  • Five inch wafer line
  • 25000 wafers per month capacity for foundry
  • Wafer fabrication and Testing

Process Capability
0.8 um ~ 1.0um CMOS Process under development
1.5 um / 2.0 um Silicon Gate CMOS

  • Twin Well / Pwell / Nwell
  • 1.5 ~ 5.0V operation
  • Single / Double Poly
  • High value Poly resistor

3.0 um / 5.0 um Silicon Gate CMOS

  • Pwell / Nwell
  • 9.0 ~ 15 V operation
  • Single / Double Poly
  • High value Poly resistor

2.0 um Low Voltage Metal Gate CMOS

  • Pwell
  • 1.5 ~ 4.5V operation
  • Junction Isolation Process
  • 6 ~ 7 masks

5.0 um High Voltage Metal Gate CMOS

  • Pwell
  • 5.0 ~ 15V operation
  • Field Oxide Isolation Process
  • 8 ~ 9 masks

Bipolar Small Signal Transistor
MOSFET
JFET
Diodes
